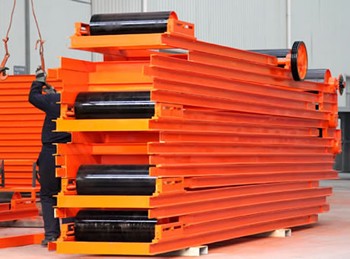

Belt Conveyor
Processing ability: 78–2195 t/h
Belt width: 500–1600 mm
Applied material: coal, gravel, sand, cement, chemical fertilizer, food, etc
The Advantages and Introduction of Belt Conveyor:
The Belt conveyor manufactured by our company has the advantages of big conveying capacity, simple structure, convenient repair and standard parts, so it is widely used in the industries of mine, metallurgy and coal to convey loose materials and finished products.The working temperature is from -20℃ to +40℃ and the temperature of conveying material is under 50℃.
The Structure and Advantages of Belt Conveyor:

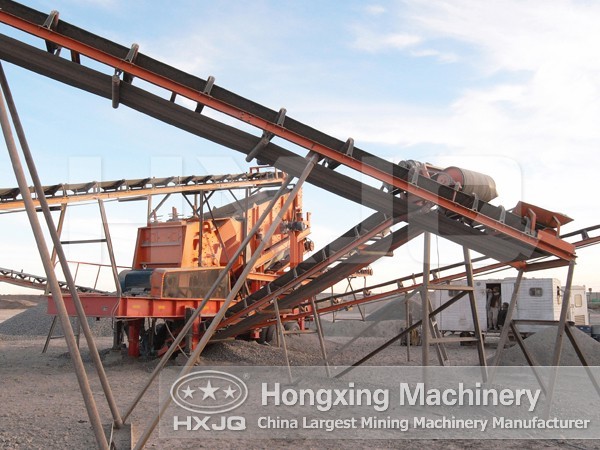

The conveyor belt system consist of standard parts, which are advanced and simple in structure, easy to maintain. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. According to different transferring equipment, the transfer system can be one independently or multi-conveyers or combined with other transfer equipments. The Belt conveyer can be installed horizontally or aslope to meet the needs of different transfer lines.
Technical data
| Belt width(mm) | Conveying length(m) Power(kw) |
Conveying speed(m/s) | Conveying amount(t/h) | ||
| 400 | ≤10 3 |
12-15 3-4 |
15-30 4-7.5 |
1.25-2.0 | 30-60 |
| 500 | ≤10 3 |
12-15 4-5.5 |
15-30 5.5-7.5 |
1.25-2.0 | 40-80 |
| 650 | ≤10 4 |
12-15 7.5 |
15-30 7.5-11 |
1.25-2.0 | 80-120 |
| 800 | ≤10 4 |
12-15 7.5 |
15-30 7.5-15 |
1.25-2.0 | 120-200 |
| 1000 | ≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.25-2.0 | 200-320 |
| 1200 | ≤10 7.5 |
10-20 7.5-15 |
20-40 15-30 |
1.25-2.0 | 290-480 |
| 1400 | ≤10 11 |
10-20 15-22 |
＜20-40 22-45 |
1.25-2.0 | 400-680 |
| 1600 | ≤10 15 |
10-20 22-30 |
＜20-50 30-75 |
1.25-2.0 | 600-1080 |
| 1800 | ≤10 18.5 |
10-20 30-45 |
＜20-50 45-110 |
1.0-2.0 | 200-1500 |
| 2000 | ≤10 22 |
10-20 45-55 |
＜20-40 55-132 |
1.0-2.0 | 1000-2000 |
| 2400 | ≤10 30 |
10-20 55-75 |
＜20-40 75-185 |
1.0-2.0 | 1500-3000 |
