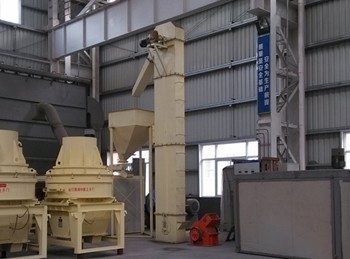

Bucket Elevator
Lift height: 28-32.7 m
Throughput: 3-60m³/h
Applied material: coal, cement, stone, sand, clay and ore
The Advantages and Description of Bucket Elevator:
The machine has the advantages of big conveying capacity, high hoisting height, stable and reliable running and long service life. Performance and parameter are in accordance with JB3926—85 'Vertical Bucket Elevator', which consults the international standard and advanced foreign standard and the towing circle chain is in accordance with MT36—80 'High-Strength Circle Chain for Mine.
The Materials Can Be Transported by Bucket Elevator:
The machine is applicable for conveying the power, grain and block materials, such as coal, cement, block, sand, clay and ore. The bucket elevator is allowed to convey materials with high temperature when armed with special circle chain structure.
Technical data
Technical parameters of ring chainbucket elevator
| Specification | Max.lifting height (m) |
Conveying capacity (m³/h) |
Max.size (mm) |
Pitch of buckets (mm) |
Motor prower （kw） |
| TH160 | 25 | 7-12 | 15-20 | 400 | 3-4 |
| TH200 | 28 | 8-15 | 20-30 | 500 | 3-5.5 |
| TH250 | 30 | 10-25 | 25-35 | 500 | 4-7.5 |
| TH300 | 30 | 25-35 | 30-40 | 500 | 5.5-11 |
| TH315 | 40 | 30-40 | 35-45 | 512 | 5.5-15 |
| TH400 | 40 | 45-60 | 40-55 | 512 | 11-22 |
| TH500 | 40 | 65-80 | 50-60 | 512 | 15-30 |
| TH630 | 40 | 100-120 | 60-65 | 688 | 18.5-37 |
| TH800 | 40 | 130-150 | 65-75 | 920 | 22-45 |
Technical parameters of wire belt bucket elevator
| Specification | Max.lifting height (m) |
Conveying capacity (m³/h) |
Max.size (mm) |
Bucket Volume (L) |
Motor prower （kw） |
| TDG160 | 80 | 34 | 0-20 | 2.6 | 2.2-11 |
| TDG200 | 80 | 45 | 0-25 | 4.1 | 3-15 |
| TDG250 | 80 | 71 | 0-30 | 6.5 | 5.5-22 |
| TDG315 | 80 | 101 | 0-35 | 10 | 7.5-30 |
| TDG400 | 80 | 158 | 0-40 | 16 | 15-45 |
| TDG500 | 80 | 218 | 0-45 | 25 | 18.5-55 |
| TDG630 | 80 | 345 | 0-50 | 40 | 30-90 |
| TDG800 | 80 | 491 | 0-50 | 61 | 45-132 |
Plate chain bucket elevator
| Specification | Max.lifting height （m） |
Max.lifting capacity （m³/h） |
Percentageallowed （%） |
Pitch （mm） |
Motor power （kw） |
||||
| 10 | 25 | 50 | 75 | 100 | |||||
| Max.size（mm） | |||||||||
| NE15 | 40 | 16 | 65 | 50 | 40 | 30 | 25 | 101.66 | 1.5-4 |
| NE30 | 59 | 31 | 90 | 75 | 58 | 47 | 40 | 152.4 | 2.2-7.5 |
| NE50 | 62 | 60 | 90 | 75 | 58 | 47 | 40 | 152.4 | 3-15 |
| NE100 | 58 | 110 | 130 | 105 | 80 | 65 | 55 | 200 | 7.5-30 |
| NE150 | 65 | 170 | 130 | 105 | 80 | 65 | 55 | 200 | 11-37 |
| NE200 | 73 | 220 | 170 | 135 | 100 | 85 | 70 | 250 | 18.5-75 |
| NE300 | 61 | 320 | 170 | 135 | 100 | 85 | 70 | 250 | 22-75 |
| NE400 | 47 | 420 | 205 | 165 | 125 | 105 | 90 | 300 | 45-90 |
| NE500 | 58 | 500 | 240 | 190 | 145 | 120 | 100 | 300 | 45-132 |
