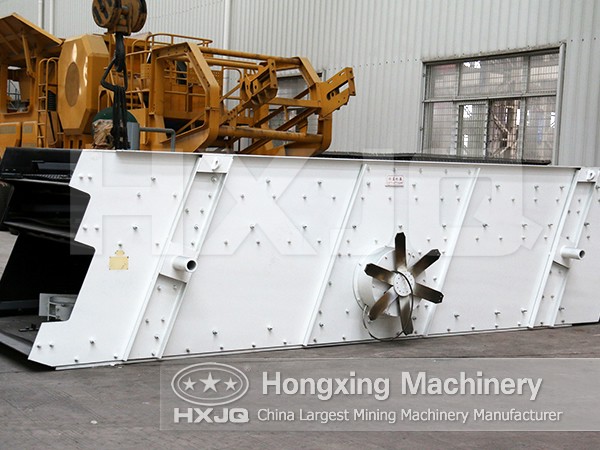

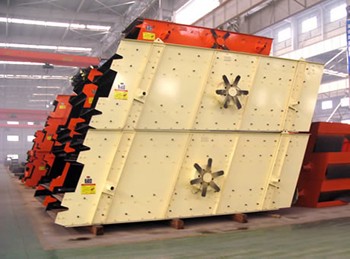

Vibrating Screen
Processing capacity: 8-800m³/h
Vibrating power: 800-970r/min
Max. feeding size: 400mm
The Main Types and Application of Vibrating Screen:
Vibrating screen which can divided into two types including circular vibrating screen and linear vibrating screen is vibrated in the circling motion. The screen line of material is long and the screening specification is various. Every screen specification is clear. So it is widely used in mining, construction material, transportation, energy and chemical industry for classification.
The Performance Characteristics of Vibrating Screen:
The circular vibrating screen's movement locus is a circumference. The circular vibrating screen adopts cylinder type eccentric shaft vibrator and partial block to adjust the amplitude. The materiel sieve drip line is long and the screen specifications are more. It is designed especially for screening the raw rock in stone factory. The circular vibrating screen can also used for production in mine, construction, electricity, chemical industry. The screening machine has the features of reliable structure, strong exciting force, high screen efficient, low vibrating noise, simple maintenance and safe operation.
Technical data
| Model | Sieve layer |
Sieve area (m²) |
Mesh size (mm) |
Max. feeding size (mm) |
>Processing capacity (m³/h) |
Vibrating Frequency (r/min) |
Double amplitude (mm) |
Motor power (kw) |
Sieve obliquity (°) |
Sieve specification (mm) |
>Dimensions (L×W×H) (mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 6P 5.5 | 20 | 1200×2500 | 2930×1860×870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 6P 5.5 | 20 | 1200×2500 | 3070×1860×1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3000 | 3430×1860×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3000 | 3570×1860×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3700 | 4050×1860×870 |
| 3YK1237 | 3 | 13.32 | 4-50 | 400 | 16-90 | 800-970 | 8 | 6P 7.5 | 20 | 1200×3700 | 4270×1860×1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 6P 11 | 20 | 1500×3500 | 4120×2210×1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 6P 11 | 20 | 1500×3500 | 4360×2210×1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 6P 11 | 20 | 1500×4500 | 5120×2210×1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 800-970 | 8 | 6P 15 | 20 | 1500×4500 | 5360×2210×1610 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 6P 15 | 20 | 1500×4500 | 5930×2210×2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 6P 11 | 20 | 1500×4800 | 5420×2210×1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 6P 15 | 20 | 1500×4800 | 5660×2210×1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 6P 18.5 | 20 | 1500×4800 | 6230×2210×2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 6P 18.5 | 20 | 1800×4800 | 5420×2550×1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 750 | 8 | 6P 18.5 | 20 | 1800×4800 | 5660×2550×1780 |
| 4YK1848 | 4 | 34.56 | 5-80 | 400 | 32-285 | 750 | 8 | 6P 22 | 20 | 1800×4800 | 6290×2550×2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 800-970 | 8 | 6P 22 | 20 | 1800×5400 | 5960×2550×1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 6P 22 | 20 | 1800×5400 | 6260×2550×1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 6P 22 | 20 | 1800×5400 | 6830×2550×2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 6P 30 | 20 | 2100×6000 | 6720×2840×1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 970 | 8 | 6P 30 | 20 | 2100×6000 | 7030×2840×1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 6P 37 | 20 | 2100×6000 | 7300×2840×2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 6P 30 | 20 | 2400×6000 | 7020×3140×1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 6P 37 | 20 | 2400×6000 | 7300×3140×1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 8 | 6P 45 | 20 | 2400×6000 | 7600×3140×2380 |
| 2YK2870 | 2 | 39.2 | 5-100 | 400 | 120-680 | 750 | 8 | 8P 22×2 | 20 | 2800×7000 | 7600×4320×1620 |
| 3YK2870 | 3 | 58.8 | 5-100 | 400 | 180-720 | 750 | 8 | 8P 22×2 | 20 | 2800×7000 | 7800×4320×2120 |
| 2YK3072 | 2 | 43.2 | 5-100 | 400 | 200-700 | 750 | 8 | 8P 22×2 | 20 | 3000×7200 | 7800×4520×1750 |
| 3YK3072 | 3 | 64.8 | 5-100 | 400 | 230-800 | 750 | 8 | 8P 22×2 | 20 | 3000×7200 | 8000×4520×2300 |
